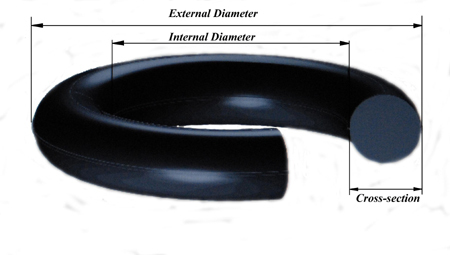

O-ring

Vật liệu: NBR, HNBR, VQM, EPDM, FKM,..

Độ cứng: 70-90 Shore A

Giá:: Liên hệ

O-ring

568-001 0.74*1.02   H90074N 1.200*1.9   H90104N 31.50*2.65   568-201 4.34*3.53   568-351 120.02*5.34   568-425 113.67*6.99
568-002 1.07*1.27   H90075N 2.200*1.9   H90105N 33.50*2.65   568-202 5.94*3.53   568-352 123.19*5.34   568-426 116.84*6.99
568-003 1.42*1.53   P-003 2.8*1.9   H90106N 34.50*2.65   568-203 7.52*3.53   568-353 126.37*5.34   568-427 120.02*6.99
568-004 1.78*1.78   P-004 3.8*1.9   H90107N 35.50*2.65   568-204 9.12*3.53   568-354 129.54*5.34   568-428 123.19*6.99
568-005 2.57*1.78   P-005 4.8*1.9   H90108N 36.50*2.65   568-205 10.69*3.53   568-355 132.72*5.34   568-429 126.37*6.99
568-006 2.90*1.78   P-006 5.8*1.9   H90109N 37.50*2.65   568-206 12.29*3.53   568-356 135.89*5.34   568-430 129.54*6.99
568-007 3.68*1.78   P-007 6.8*1.9   H90110N 38.70*2.65   568-207 13.87*3.53   568-357 139.07*5.34   568-431 132.54*6.99
568-008 4.47*1.78   P-008 7.8*1.9   H90111N 40.00*2.65   568-208 15.47*3.53   568-358 142.24*5.34   568-432 135.89*6.99
568-009 5.28*1.78   P-009 8.8*1.9   H90112N 41.20*2.65   568-209 17.04*3.53   568-359 145.42*5.34   568-433 139.07*6.99
568-010 6.07*1.78   P-010 9.8*1.9   H90113N 42.50*2.65   568-210 18.64*3.53   568-360 148.59*5.34   568-434 142.24*6.99
568-011 7.65*1.78   P-010A 9.8*2.4   H90114N 43.70*2.65   568-211 20.22*3.53   568-361 151.77*5.34   568-435 145.42*6.99
568-011A 8.73*1.78   P-011 10.8*2.4   H90115N 45.00*2.65   568-212 21.82*3.53   568-362 158.12*5.34   568-436 148.59*6.99
568-012 9.25*1.78   P-011.2 11.0*2.4   H90116N 46.20*2.65   568-213 23.39*3.53   568-363 164.47*5.34   568-437 151.77*6.99
568-013 10.8*1.78   P-012 11.8*2.4   H90117N 47.50*2.65   568-214 24.99*3.53   568-364 170.82*5.34   568-438 158.12*6.99
568-014 12.42*1.78   P-012.5 12.3*2.4   H90118N 48.70*2.65   568-215 26.57*3.53   568-365 177.17*5.34   568-439 164.47*6.99
568-015 14.00*1.78   P-014 13.8*2.4   H90119N 50.00*2.65   568-216 28.17*3.53   568-366 183.52*5.34   568-440 170.82*6.99
568-016 15.60*1.78   P-015 14.8*2.4   H90120N 51.50*2.65   568-217 29.74*3.53   568-367 189.87*5.34   568-441 177.17*6.99
568-017 17.17*1.78   P-016 15.8*2.4   H90121N 53.00*2.65   568-218 31.34*3.53   568-368 196.22*5.34   568-442 183.52*6.99
568-018 18.77*1.78   P-017 16.8*2.4   H90122N 54.50*2.65   568-219 32.92*3.53   568-369 202.57*5.34   568-443 189.87*6.99
568-019 20.35*1.78   P-018 17.8*2.4   H90123N 56.00*2.65   568-220 34.52*3.53   568-370 208.92*5.34   568-444 196.22*6.99
568-020 21.95*1.78   P-019 18.8*2.4   H90124N 58.00*2.65   568-221 36.09*3.53   568-371 215.27*5.34   568-445 202.57*6.99
568-021 23.52*1.78   P-020 19.8*2.4   H90125N 60.00*2.65   568-222 37.69*3.53   568-373 227.97*5.34   568-446 215.27*6.99
568-022 25.12*1.78   P-021 20.8*2.4   H90126N 61.50*2.65   568-223 40.87*3.53   568-374 234.32*5.34   568-447 227.97*6.99
568-023 26.70*1.78   P-022 21.8*2.4   H90127N 63.00*2.65   568-224 44.04*3.53   568-375 240.67*5.34   568-448 240.67*6.99
568-024 28.30*1.78   568-102 1.25*2.62   H90128N 65.00*2.65   568-225 47.22*3.53   568-376 247.02*5.34   568-449 253.37*6.99
568-025 29.87*1.78   568-103 2.06*2.62   H90129N 67.00*2.65   568-226 50.39*3.53   568-377 253.37*5.34   568-450 266.07*6.99
568-026 31.47*1.78   568-104 2.85*2.62   H90130N 69.00*2.65   568-227 53.57*3.53   568-378 266.07*5.34   568-451 278.77*6.99
568-027 33.05*1.78   568-105 3.63*2.62   H90131N 71.00*2.65   568-228 56.75*3.53   568-379 278.77*5.34   568-452 291.47*6.99
568-028 34.65*1.78   568-106 4.42*2.62   H90132N 73.00*2.65   568-229 59.92*3.53   568-380 291.47*5.34   568-453 304.17*6.99
568-029 37.82*1.78   568-107 5.23*2.62   H90133N 74.00*2.65   568-230 63.09*3.53   568-381 304.17*5.34   568-454 316.87*6.99
568-030 41.00*1.78   568-108 6.02*2.62   H90134N 75.00*2.65   568-231 66.27*3.53   568-382 329.57*5.34   568-455 329.57*6.99
568-031 44.17*1.78   568-109 7.60*2.62   H90135N 80.00*2.65   568-232 69.44*3.53   568-383 354.97*5.34   568-456 342.27*6.99
568-032 47.35*1.78   568-110 9.20*2.62   H90136N 85.00*2.65   568-233 72.62*3.53   568-385 405.26*5.34   568-457 354.97*6.99
568-033 50.52*1.78   568-111 10.77*2.62   H90137N 90.00*2.65   568-234 75.80*3.53   568-386 430.66*5.34   568-458 367.67*6.99
568-034 53.70*1.78   568-112 12.37*2.62   H90138N 95.00*2.65   568-235 78.97*3.53   568-387 456.06*5.34   568-459 380.37*6.99
568-035 56.78*1.78   568-113 13.95*2.62   H90139N 100.00*2.65   568-236 82.14*3.53   568-388 481.46*5.34   568-460 393.07*6.99
568-036 60.05*1.78   568-114 15.55*2.62   H90140N 106.00*2.65   568-237 85.32*3.53   568-389 506.86*5.34   568-461 405.26*6.99
568-037 63.32*1.78   568-115 17.12*2.62   H90141N 112.00*2.65   568-238 88.49*3.53   568-390 532.26*5.34   568-462 417.96*6.99
568-038 66.40*1.78   568-116 18.72*2.62   H90142N 118.00*2.65   568-239 91.67*3.53   568-391 557.66*5.34   568-463 430.66*6.99
568-039 69.57*1.78   568-117 20.30*2.62   H90143N 120.00*2.65   568-240 94.87*3.53   568-392 582.68*5.34   568-464 443.36*6.99
568-040 72.75*1.78   568-118 21.90*2.62   H90144N 125.00*2.65   568-241 98.02*3.53   568-393 608.08*5.34   568-465 456.06*6.99
568-041 75.75*1.78   568-119 23.47*2.62   H90145N 128.00*2.65   568-242 101.20*3.53   568-394 633.48*5.34   568-466 468.76*6.99
568-042 82.27*1.78   568-120 25.07*2.62   H90146N 132.00*2.65   568-243 104.37*3.53   568-395 658.88*5.34   568-467 481.46*6.99
568-043 88.62*1.78   568-121 26.65*2.62   H90147N 136.00*2.65   568-244 107.54*3.53   568-384 380.37*5.34   568-468 494.16*6.99
568-044 94.97*1.78   568-122 28.25*2.62   H90148N 140.00*2.65   568-245 110.72*3.53   568-372 221.62*5.34   568-469 506.86*6.99
568-045 101.32*1.78   568-123 29.82*2.62   H90149N 145.00*2.65   568-246 113.89*3.53   P-048A 47.6*5.7   568-470 532.26*6.99
568-046 107.67*1.78   568-124 31.42*2.62   H90150N 150.00*2.65   568-247 117.07*3.53   P-050A 49.6*5.7   568-471 557.66*6.99
568-047 114.02*1.78   568-125 33    * 2.62   H90151N 155.00*2.65   568-248 120.07*3.53   P-052 51.6*5.7   568-472 582.68*6.99
568-048 120.37*1.78   568-126 34.60*2.62   H90152N 160.00*2.65   568-249 123.42*3.53   P-053 52.6*5.7   568-473 608.08*6.99
568-049 126.72*1.78   568-127 36.17*2.62   H90153N 165.00*2.65   568-250 126.59*3.53   P-055 54.6*5.7   568-474 633.48*6.99
568-050 133.07*1.78   568-128 37.77*2.62   H90154N 170.00*2.65   568-251 129.77*3.53   P-056 55.6*5.7   568-475 658.88*6.99
H90001N 1.80*1.8   568-129 39.35*2.62   H90155N 175.00*2.65   568-252 132.94*3.53   P-058 57.6*5.7   P-150A 149.5*8.4
H90002N 2.00*1.8   568-130 40.95*2.62   H90156N 180.00*2.65   568-253 136.12*3.53   P-060 59.6*5.7   P-155 154.5*8.4
H90003N 2.24*1.8   568-131 42.52*2.62   H90157N 190.00*2.65   568-254 139.29*3.53   P-062 61.6*5.7   P-160 159.5*8.4
H90004N 2.50*1.8   568-132 44.12*2.62   H90158N 200.00*2.65   568-255 142.47*3.53   P-063 62.6*5.7   P-165 164.5*8.4
H90005N 2.80*1.8   568-133 45.70*2.62   H90159N 250.00*2.65   568-256 145.64*3.53   P-065 64.6*5.7   P-170 169.5*8.4
H90006N 3.15*1.8   568-134 47.30*2.62   H90160N 258.00*2.65   568-257 148.82*3.53   P-067 66.6*5.7   P-175 174.5*8.4
H90007N 3.55*1.8   568-135 48.90*2.62   H90161N 280.00*2.65   568-258 151.99*3.53   P-070 69.6*5.7   P-180 179.5*8.4
H90008N 3.75*1.8   568-136 50.47*2.62   H90162N 380.00*2.65   568-259 158.34*3.53   P-071 70.6*5.7   P-185 184.5*8.4
H90009N 4.00*1.8   568-137 52.07*2.62   H90163N 450.00*2.65   568-260 164.69*3.53   P-075 74.6*5.7   P-190 189.5*8.4
H90010N 4.50*1.8   568-138 53.64*2.62   G-025 24.4*3.1   568-261 171.04*3.53   P-080 79.6*5.7   P-195 194.5*8.4
H90011N 4.87*1.8   568-139 55.25*2.62   G-030 29.4*3.1   568-262 177.39*3.53   P-085 84.6*5.7   P-200 199.5*8.4
H90012N 5.00*1.8   568-140 56.82*2.62   G-035 34.4*3.1   568-263 183.74*3.53   P-090 89.6*5.7   P-205 204.5*8.4
H90013N 5.15*1.8   568-141 58.42*2.62   G-040 39.4*3.1   568-264 190.09*3.53   P-095 94.6*5.7   P-209 208.5*8.4
H90014N 5.30*1.8   568-142 59.99*2.62   G-042 41.4*3.1   568-265 196.44*3.53   P-100 99.6*5.7   P-210 209.5*8.4
H90015N 5.60*1.8   568-143 61.60*2.62   G-045 44.4*3.1   568-266 202.79*3.53   P-102 101.6*5.7   P-215 214.5*8.4
H90016N 6.00*1.8   568-144 63.17*2.62   G-050 49.4*3.1   568-267 209.14*3.53   P-105 104.6*5.7   P-220 219.5*8.4
H90017N 6.30*1.8   568-145 64.77*2.62   G-055 54.4*3.1   568-268 215.49*3.53   P-110 109.6*5.7   P-225 224.5*8.4
H90018N 6.70*1.8   568-146 66.34*2.62   G-058 57.4*3.1   568-269 221.84*3.53   P-112 111.6*5.7   P-230 229.5*8.4
H90019N 6.90*1.8   568-147 67.95*2.62   G-060 59.4*3.1   568-270 228.19*3.53   P-115 114.6*5.7   P-235 234.5*8.4
H90020N 7.10*1.8   568-148 69.52*2.62   G-065 64.4*3.1   568-271 234.54*3.53   P-120 119.6*5.7   P-240 239.5*8.4
H90021N 7.50*1.8   568-149 71.12*2.62   G-070 69.4*3.1   568-272 240.89*3.53   P-125 124.6*5.7   P-245 244.5*8.4
H90022N 8.00*1.8   568-150 72.69*2.62   G-075 74.4*3.1   568-273 247.24*3.53   P-130 129.6*5.7   P-250 249.5*8.4
H90023N 8.50*1.8   568-151 75.87*2.62   G-080 79.4*3.1   568-274 253.59*3.53   P-132 131.6*5.7   P-335 334.5*8.4
H90024N 8.75*1.8   568-152 82.22*2.62   G-085 84.8*3.1   568-275 266.29*3.53   P-135 134.6*5.7   P-340 339.5*8.4
H90025N 9.00*1.8   568-153 88.57*2.62   G-090 89.4*3.1   568-276 278.99*3.53   P-140 139.6*5.7   P-355 354.5*8.4
H90026N 9.50*1.8   568-154 94.92*2.62   G-095 94.4*3.1   568-277 291.69*3.53   P-145 144.6*5.7   P-360 359.5*8.4
H90027N 10.00*1.8   568-155 101.27*2.62   G-100 99.4*3.1   568-278 304.39*3.53   G-150 149.3*5.7   P-375 375.5*8.4
H90028N 10.60*1.8   568-156 107.62*2.62   G-105 104.4*3.1   568-279 329.79*3.53   P-150 149.6*5.7   P-385 384.5*8.4
H90029N 11.20*1.8   568-157 113.97*2.62   G-110 109.4*3.1   568-280 355.19*3.53   G-155 154.3*5.7   P-400 399.5*8.4
H90030N 11.80*1.8   568-158 120.32*2.62   G-115 114.4*3.1   568-281 380.59*3.53   G-160 159.3*5.7   P-255 254.5*8.4
H90031N 12.20*1.8   568-159 126.67*2.62   G-120 119.4*3.1   568-282 405.26*3.53   G-165 164.3*5.7   P-260 259.5*8.4
H90032N 13.20*1.8   568-160 133.02*2.62   G-125 124.4*3.1   568-283 430.66*3.53   G-170 169.3*5.7   P-265 264.5*8.4
H90033N 14.00*1.8   568-161 139.37*2.62   G-130 129.4*3.1   568-284 456.06*3.53   G-175 174.3*5.7   P-270 269.5*8.4
H90034N 15.00*1.8   568-162 145.72*2.62   G-135 134.4*3.1   568-309 10.46*5.34   G-180 179.3*5.7   P-275 274.5*8.4
H90035N 16.00*1.8   568-163 152.07*2.62   G-140 139.4*3.1   568-310 12.07*5.34   G-185 184.3*5.7   P-280 279.5*8.4
H90036N 17.00*1.8   568-164 158.42*2.62   G-145 144.4*3.1   568-311 13.64*5.34   G-190 189.3*5.7   P-285 284.5*8.4
H90037N 18.00*1.8   568-165 164.77*2.62   P-022A 21.7*3.5   568-312 15.24*5.34   G-195 194.3*5.7   P-290 289.5*8.4
H90038N 19.00*1.8   568-166 171.12*2.62   P-022.4 22.1*3.5   568-313 16.81*5.34   G-200 199.3*5.7   P-295 294.5*8.4
H90039N 20.00*1.8   568-167 177.47*2.62   P-024 23.7*3.5   568-314 18.42*5.34   G-205 204.3*5.7   P-300 299.5*8.4
H90040N 21.20*1.8   568-168 183.82*2.62   P-025 24.7*3.5   568-315 19.99*5.34   G-210 209.3*5.7   P-315 314.5*8.4
H90041N 22.40*1.8   568-169 190.17*2.62   P-025.5 25.2*3.5   568-316 21.59*5.34   G-215 214.3*5.7   P-320 319.5*8.4
H90042N 23.60*1.8   568-170 196.52*2.62   P-026 25.7*3.5   568-317 23.17*5.34   G-220 219.3*5.7
H90043N 25.00*1.8   568-171 202.87*2.62   P-028 27.7*3.5   568-318 24.77*5.34   G-225 224.3*5.7
H90044N 25.80*1.8   568-172 209.22*2.62   P-029 28.7*3.5   568-319 26.34*5.34   G-230 229.3*5.7
H90045N 26.50*1.8   568-173 215.57*2.62   P-029.5 29.2*3.5   568-320 27.94*5.34   G-235 234.3*5.7
H90046N 28.00*1.8   568-174 221.92*2.62   P-030 29.7*3.5   568-321 29.51*5.34   G-240 239.3*5.7
H90047N 30.00*1.8   568-175 228.27*2.62   P-031 30.7*3.5   568-322 31.12*5.34   G-250 249.3*5.7
H90048N 31.50*1.8   568-176 234.62*2.62   P-031.5 31.2*3.5   568-323 32.69*5.34   G-255 254.3*5.7
H90049N 32.50*1.8   568-177 240.97*2.62   P-032 31.7*3.5   568-324 34.29*5.34   G-260 259.3*5.7
H90050N 33.50*1.8   568-178 247.32*2.62   P-034 33.7*3.5   568-325 37.47*5.34   G-270 269.3*5.7
H90051N 34.50*1.8   H90076N 7.10*2.65   P-035 34.7*3.5   568-326 40.64*5.34   G-275 274.3*5.7
H90052N 35.50*1.8   H90077N 7.50*2.65   P-035.5 35.2*3.5   568-327 43.82*5.34   G-280 279.3*5.7
H90053N 36.50*1.8   H90078N 8.00*2.65   P-036 35.7*3.5   568-328 46.99*5.34   G-285 284.3*5.7
H90054N 37.50*1.8   H90079N 8.50*2.65   P-038 37.7*3.5   568-329 50.17*5.34   G-290 289.3*5.7
H90055N 38.70*1.8   H90080N 8.75*2.65   P-039 38.7*3.5   568-330 53.34*5.34   G-300 299.3*5.7
H90056N 40.00*1.8   H90081N 9.00*2.65   P-040 39.7*3.5   568-331 56.52*5.34   G-305 304.3*5.7
H90057N 41.20*1.8   H90082N 9.50*2.65   P-041 40.7*3.5   568-332 59.69*5.34   G-310 309.3*5.7
H90058N 42.50*1.8   H90083N 10.00*2.65   P-042 41.7*3.5   568-333 62.87*5.34
H90059N 43.70*1.8   H90084N 10.60*2.65   P-044 43.7*3.5   568-334 66.04*5.34
H90060N 45.00*1.8   H90085N 11.20*2.65   P-045 44.7*3.5   568-335 69.22*5.34
H90061N 46.20*1.8   H90086N 11.80*2.65   P-046 45.7*3.5   568-336 72.39*5.34
H90062N 47.50*1.8   H90087N 12.50*2.65   P-048 47.7*3.5   568-337 75.57*5.34
H90063N 48.70*1.8   H90088N 13.20*2.65   P-049 48.7*3.5   568-338 78.74*5.34
H90064N 50.00*1.8   H90089N 14.00*2.65   P-050 49.7*3.5   568-339 81.92*5.34
H90065N 52.00*1.8   H90090N 15.00*2.65         568-340 85.09*5.34
H90066N 53.00*1.8   H90091N 16.00*2.65         568-341 88.27*5.34
H90067N 55.00*1.8   H90092N 17.00*2.65         568-342 91.44*5.34
H90068N 57.00*1.8   H90093N 18.00*2.65         568-343 94.62*5.34
H90069N 63.00*1.8   H90094N 19.00*2.65         568-344 97.79*5.34
H90070N 65.00*1.8   H90095N 20.00*2.65         568-345 100.97*5.34
H90071N 67.00*1.8   H90096N 21.20*2.65         568-346 104.14*5.34
H90072N 71.00*1.8   H90097N 22.40*2.65         568-347 107.32*5.34
H90073N 73.00*1.8   H90098N 23.60*2.65         568-348 110.49*5.34
      H90099N 25.00*2.65         568-349 113.67*5.34
      H90100N 25.80*2.65         568-350 116.84*5.34
      H90101N 26.50*2.65
      H90102N 28.00*2.65
      H90103N 30.00*2.65
